Full Bridge Resistant Strain Gauge with Solder Points

Full Bridge Resistant Strain Gauge with Solder Points

fitur Galeri Deskripsi Produk Quote request suatu

fitur

Spesifikasi

Histeresis: ± 0,05%

Rentang pengukuran: 0-1000 Microstrain

Suhu operasional: -20 ̊+80°C

Penggunaan: Sensor Sel Beban

Bahan Pembawa: Aldehid Fenolik/Polimida/Epoksi

Fitur: Sensor Tekanan Mikro

Bahan: lembaran logam

orang aneh: ±0,05% Skala Penuh

Jenis: Resistance strain gauge (pengukur ketegangan)

Kawat timah: 3 kawat, panjang 1 m

Perlawanan: 350.500.1000 Ohm

Melayani: kebiasaan

Model: Seri EB

Suhu kerja: －20～＋80℃,

Untuk bahan: Baja Atau Paduan Aluminium

Bahan dasar: Aldehida fenolik/Polyimide/Epoxy

Menyoroti:

full bridge strain gauge with solder points

,

foil strain gauge with solder connections

,

resistant strain gauge full bridge type

Informasi dasar

Tempat asal: CINA

Nama merek: Top Sensor

Nomor model: Seri EB

Syarat-syarat pembayaran & pengiriman

Kemasan rincian: Kotak karton

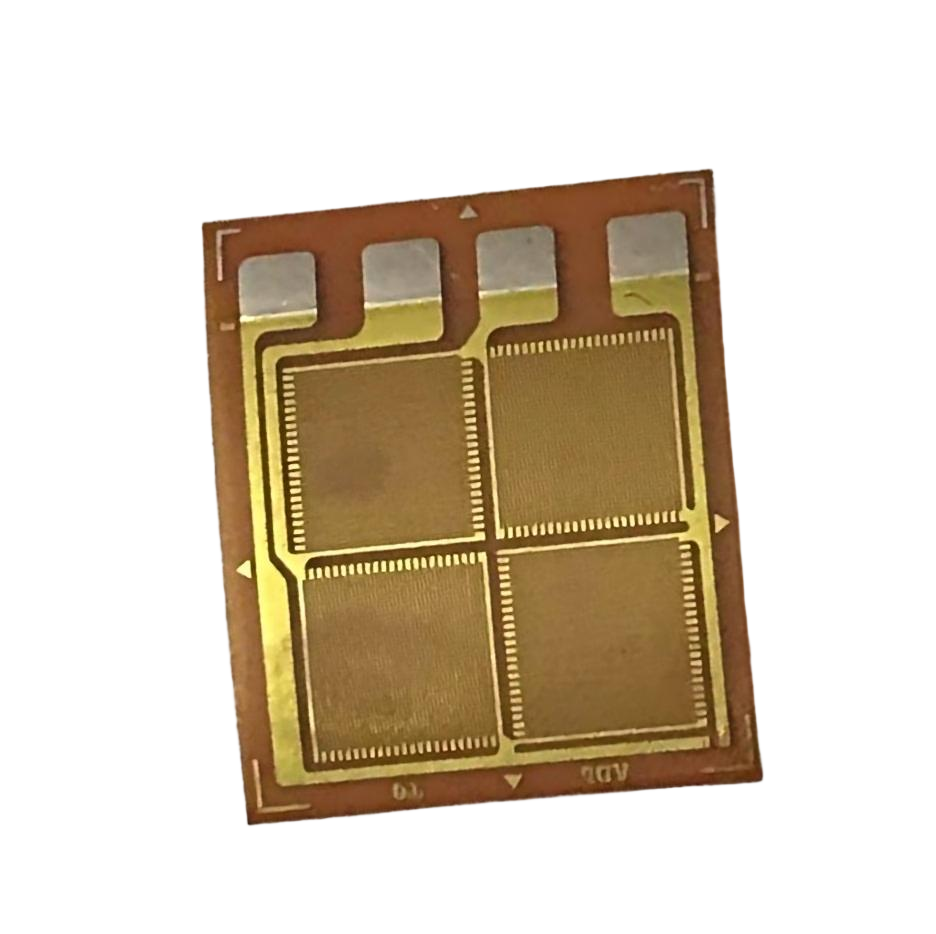

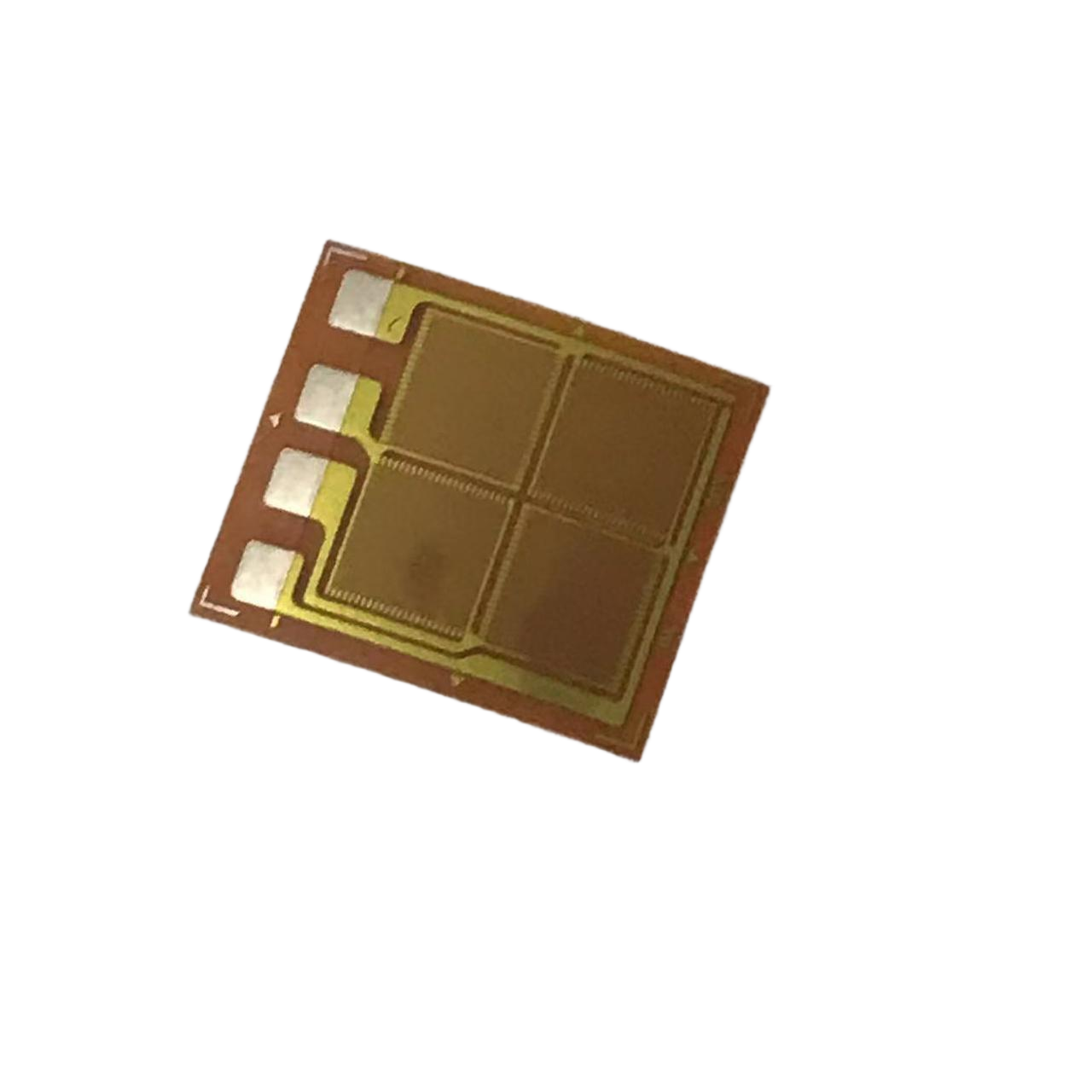

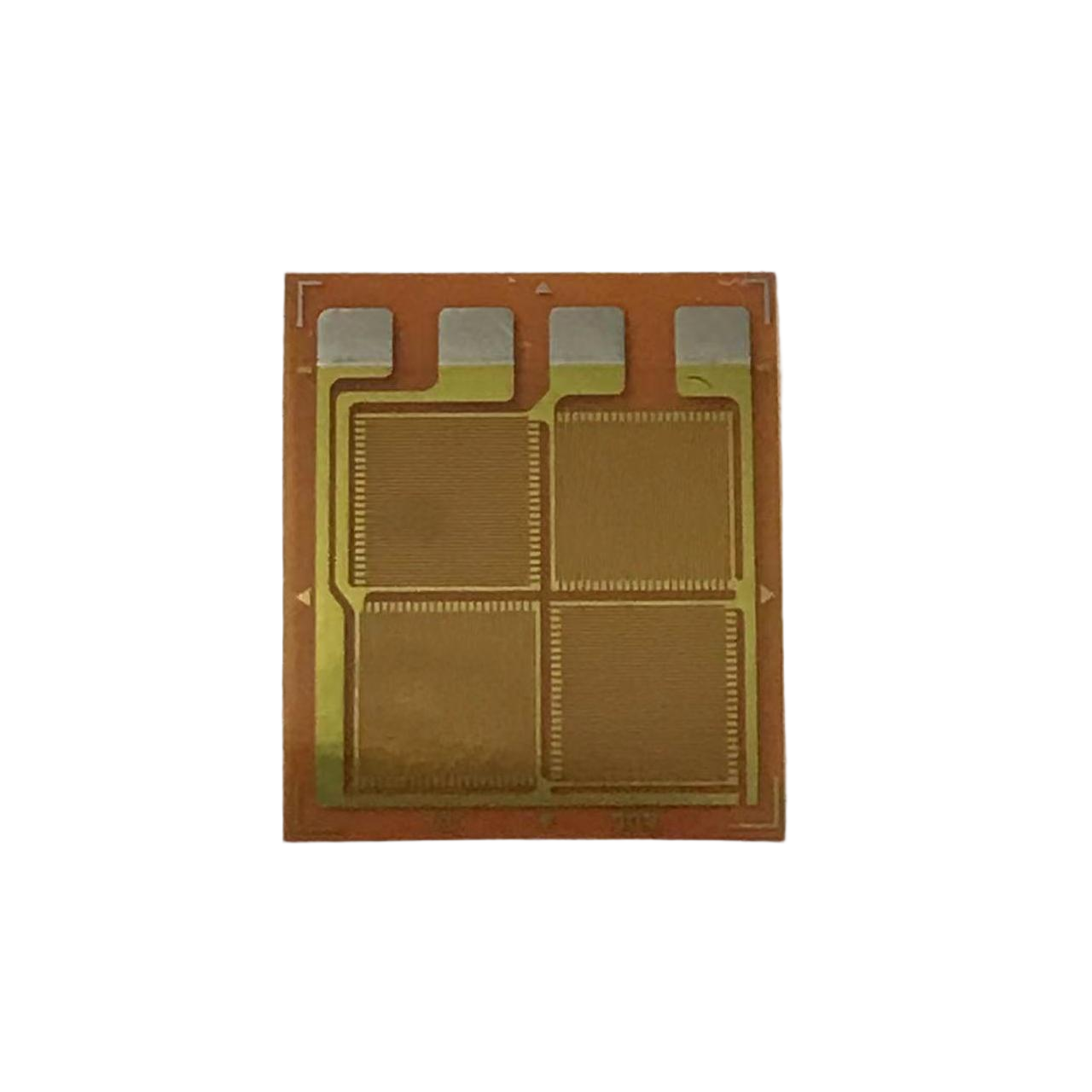

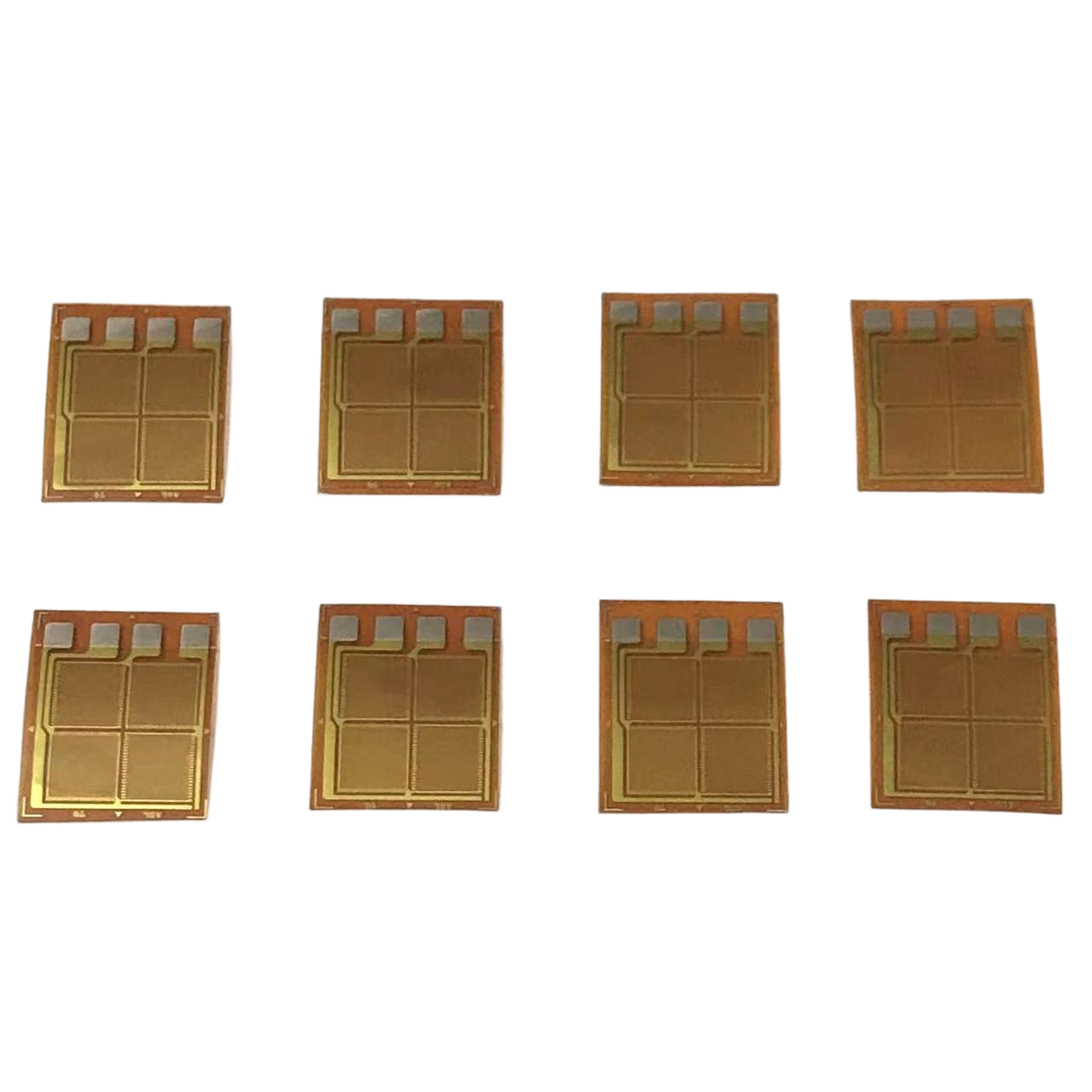

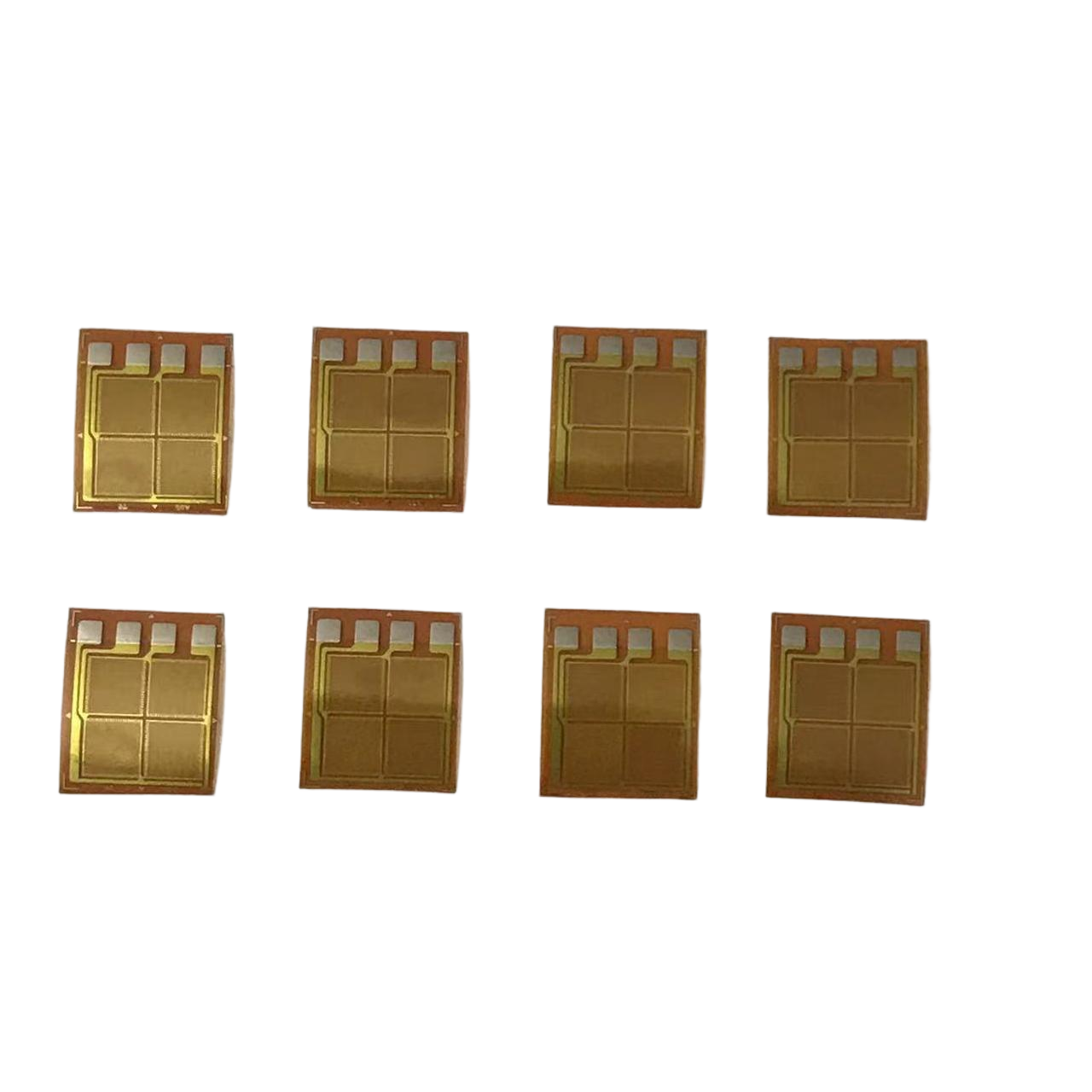

Galeri

Full Bridge Resistant Strain Gauge with Solder Points

Deskripsi Produk

Full Bridge Resistant Strain Gauge with Solder Points

Model: EB-A series

Product Description:

A full-bridge strain gauge is a high-performance sensor configuration that uses four active strain gauges wired into a Wheatstone bridge circuit All four gauges are bonded to the test object, which maximizes measurement sensitivity and provides superior compensation for thermal effects and extraneous loads compared to quarter- and half-bridge setups.

Features:

Product Name: Foil Strain Gauge
Grid number: 4
Hysteresis: ±0.05% Full Scale
Material: Steel or Alloy Aluminum
Measurement Range: 0-1000 Microstrain
Service: Custom design on carrier size, grid dimension
Carrier Material: Imported Phenolic Aldehyde/Polyimide/Epoxy
Measuring Material: Foil(nickel copper alloy, Constantan or Karma)
Resistance: 350,500,1000 Ohm
Operational temperature －20～＋80℃, Temperature compensation range ＋10～＋80℃

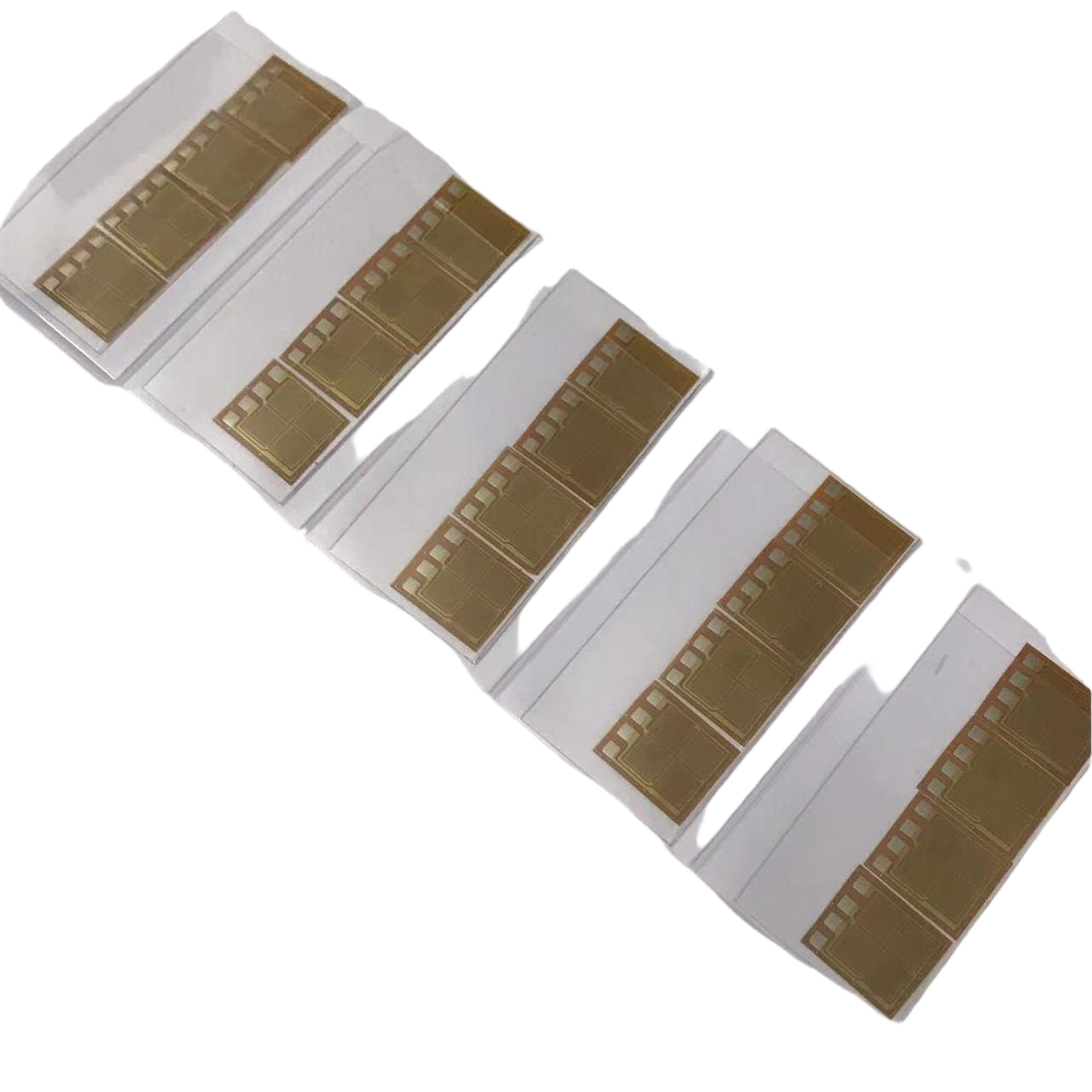

Each package 40 pcs, can be soldered copper wire, good performance
Three (3) to Five (5) solder points

Dimension:

Model	Measuring Grid Size (mm)	Carrier Size (mm)
BF350-3EB-A	2.25×2.65	9.2×7.7
ZF1000-3EB-A	2.25×2.65	9.2×7.7

Note: Other models and sizes are available according to customer request

Full Bridge Resistant Strain Gauge with Solder Points 0

Customization: carrier size, grid dimension, resistance

Label:

pengukur regangan listrik

pengukur regangan jembatan penuh

pengukur regangan tipe foil
