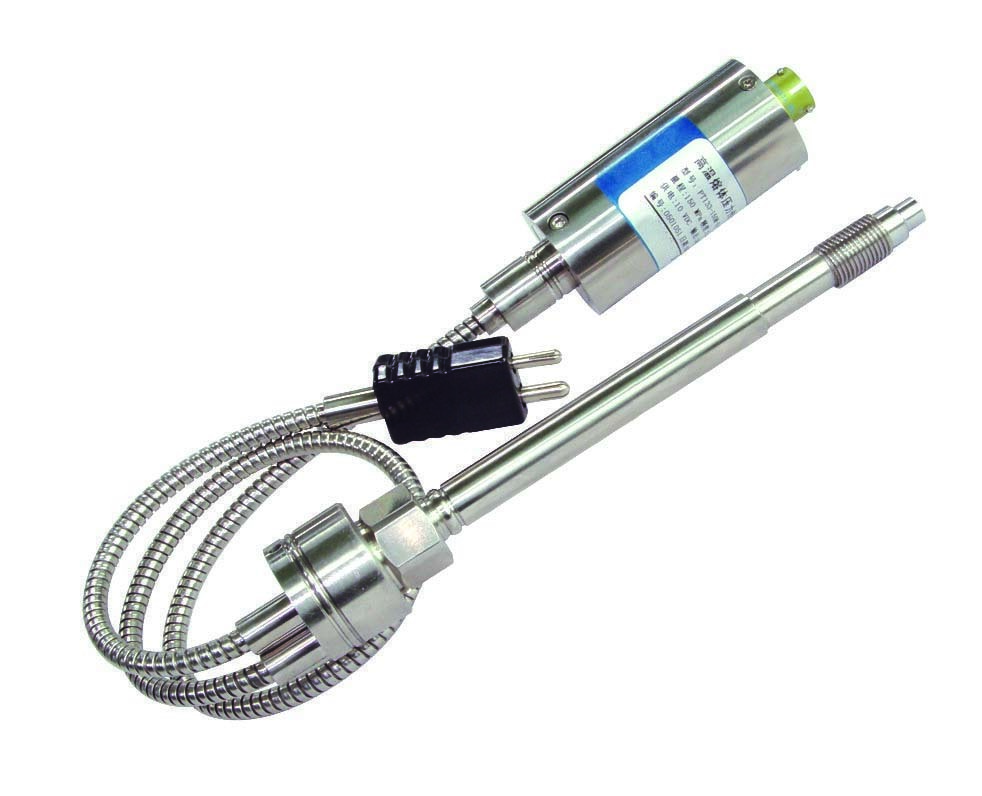

Name: High Temperature Strain Gauge Pressure Transducer 150Mpa
Brand: Top Sensor Technology Co.Ltd
SKU: PT112
Price: 999.30 USD
Availability: InStock

High Temperature Strain Gauge Pressure Transducer 150Mpa

1 pc

MOQ

negotiable

harga

fitur Galeri Deskripsi Produk Quote request suatu

fitur

Spesifikasi

Bahan: Baja tahan karat

Rentang tekanan: 0-150MPa

Ketepatan: 0,3%

Penggunaan: Pengukuran tekanan

Kelebihan Keamanan: 150%

Sinyal keluaran: 2MV, 3.3MV, 4-20mA

Sel beban: Pengukur Regangan

Menyoroti:

high temperature pressure transducer

strain gauge pressure transmitter

150Mpa pressure transducer with warranty

Informasi dasar

Tempat asal: CINA

Nama merek: TOP SENSOR

Sertifikasi: CE

Nomor model: PT112

Syarat-syarat pembayaran & pengiriman

Kemasan rincian: 1 pc per kotak

Waktu pengiriman: 10 hari

Syarat-syarat pembayaran: T/T, Western Union

Menyediakan kemampuan: 300 pcs per bulan

Galeri

High Temperature Strain Gauge Pressure Transducer 150Mpa

Deskripsi Produk

High Temperature Strain Gauge Pressure Transducer 150Mpa

Model: PT112

Melt Pressure Transducer

Melt Pressure Transducer, Pressure Sensor Model: PT112 Insulated by rigid or flex tube with thermocouple, this kind of melt pressure transducer can measure pressure and temperature at the same time Applying to pressure measuring and controlling of Rubber, Chemical fiber, Petro-chemical and other...

Send Inquiry

Melt Pressure Transducer, Pressure Sensor
Model: PT112
Insulated by rigid or flex tube with thermocouple, this kind of melt pressure transducer can measure pressure and temperature at the same time
Applying to pressure measuring and controlling of Rubber, Chemical fiber, Petro-chemical and other special occasions

Parameter	Value
Measure Range	0-150Mpa
Overload Pressure	1.5×RP(rated pressure)
Broken Pressure	3×RP(rated pressure)
Accuracy	±0.3, ±0.5, ±1%F.S
Stability	Typical ±0.5%F.S, Max ±1%F.S
Operate Temperature	－10℃~400℃
Wire	2 Wires/3 wires
Output Signal	2mv/v, 3.3mv/v, 4~20mA/0.5-4.5v
Power Supply	12~30Vdc
Internal Shunt Calibration (R-Cal)	80% FSO +/- 1%
Insulation	＞2000M @100V
Electric Connect	5 pins or 6 pins connector
Thread. Connect	1/2-20UNF or requested by customer
Response Time	10ms
Length of Rigid Stem	2.36", 60mm, or 6", 152mm
Length of Flexible Tube	18", 460mm

Customization: Melt pressure sensor outlet/ inlet, cable length
