IP68 Single Shear Beam Strain Gauge Force Sensor

4 pcs
MOQ
negotiable
harga
IP68 Single Shear Beam Strain Gauge Force Sensor
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Nama Produk: Load Cell Tipe Balok Geser
Kapasitas: 100kg, 200kg, 300kg, 500kg
Nomor model: SD-08
Bahan: Baja Paduan atau Baja Tahan Karat
Menyoroti:

IP68 waterproof strain gauge

,

single shear beam load cell

,

force sensor with strain gauge
Informasi dasar
Tempat asal: CINA
Nama merek: TOP SENSOR
Sertifikasi: CE
Nomor model: SD-08
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: 1 pc per kotak, 20 pcs per karton
Waktu pengiriman: 20 hari
Syarat-syarat pembayaran: T/T, Western Union
Menyediakan kemampuan: 2000 pcs per bulan
Deskripsi Produk

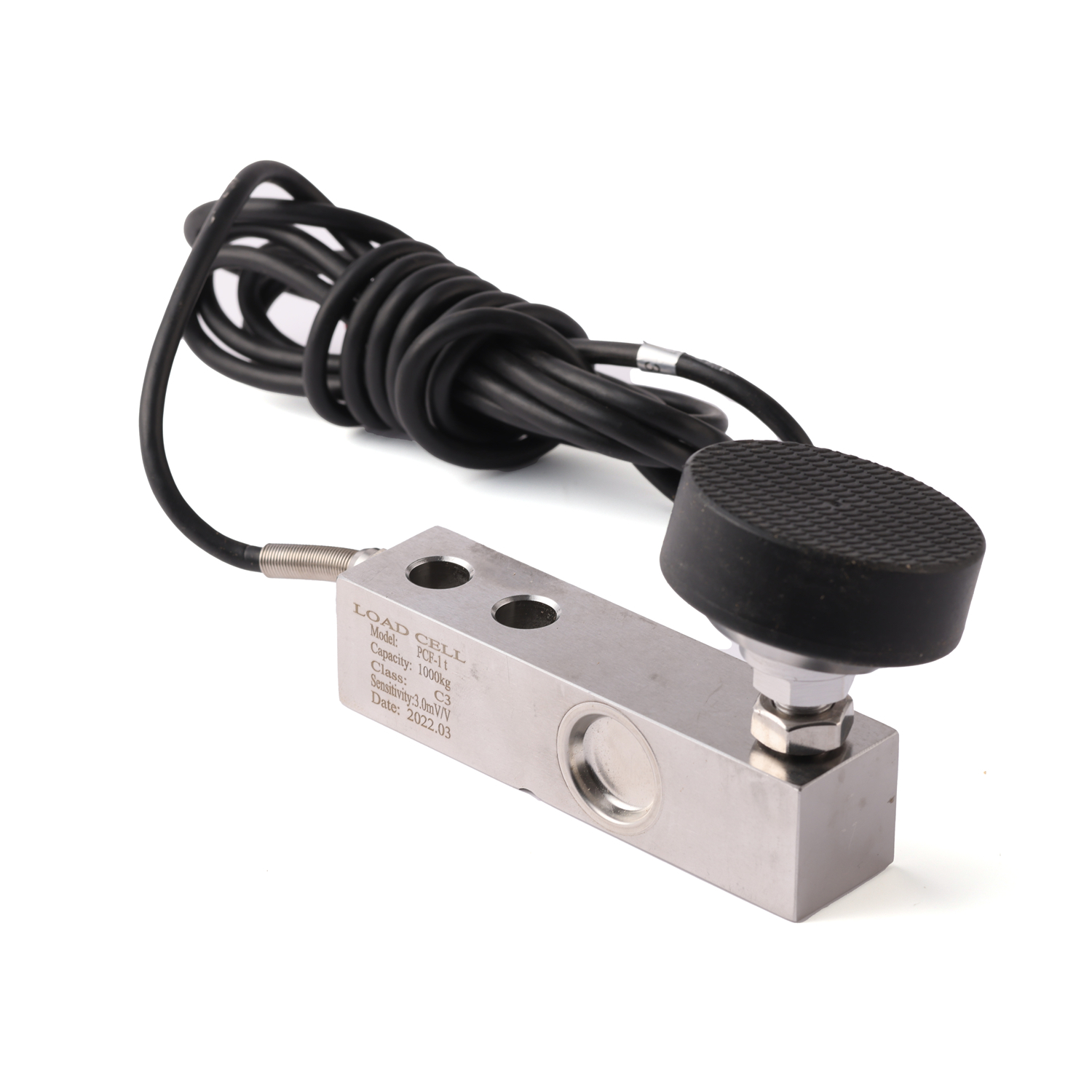

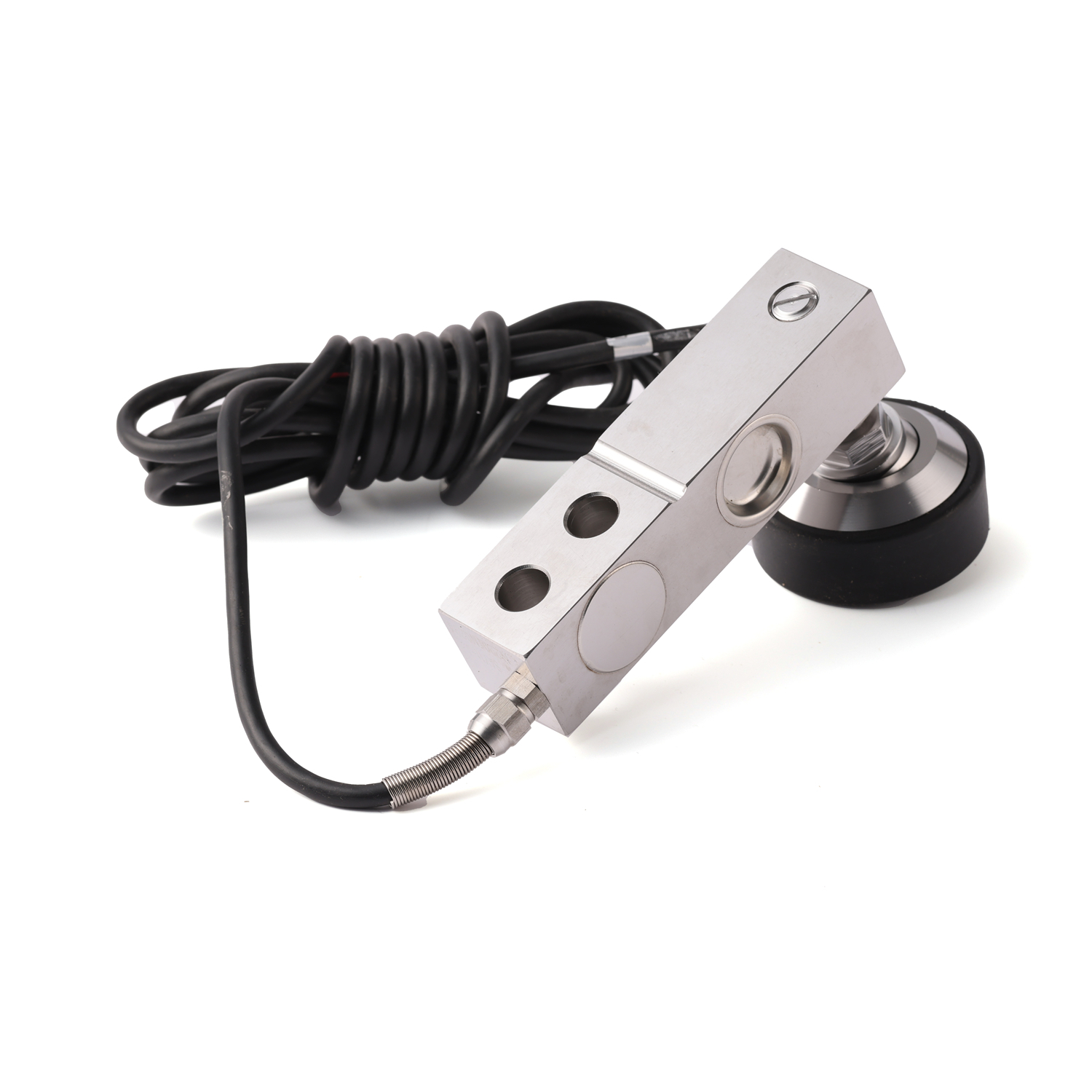

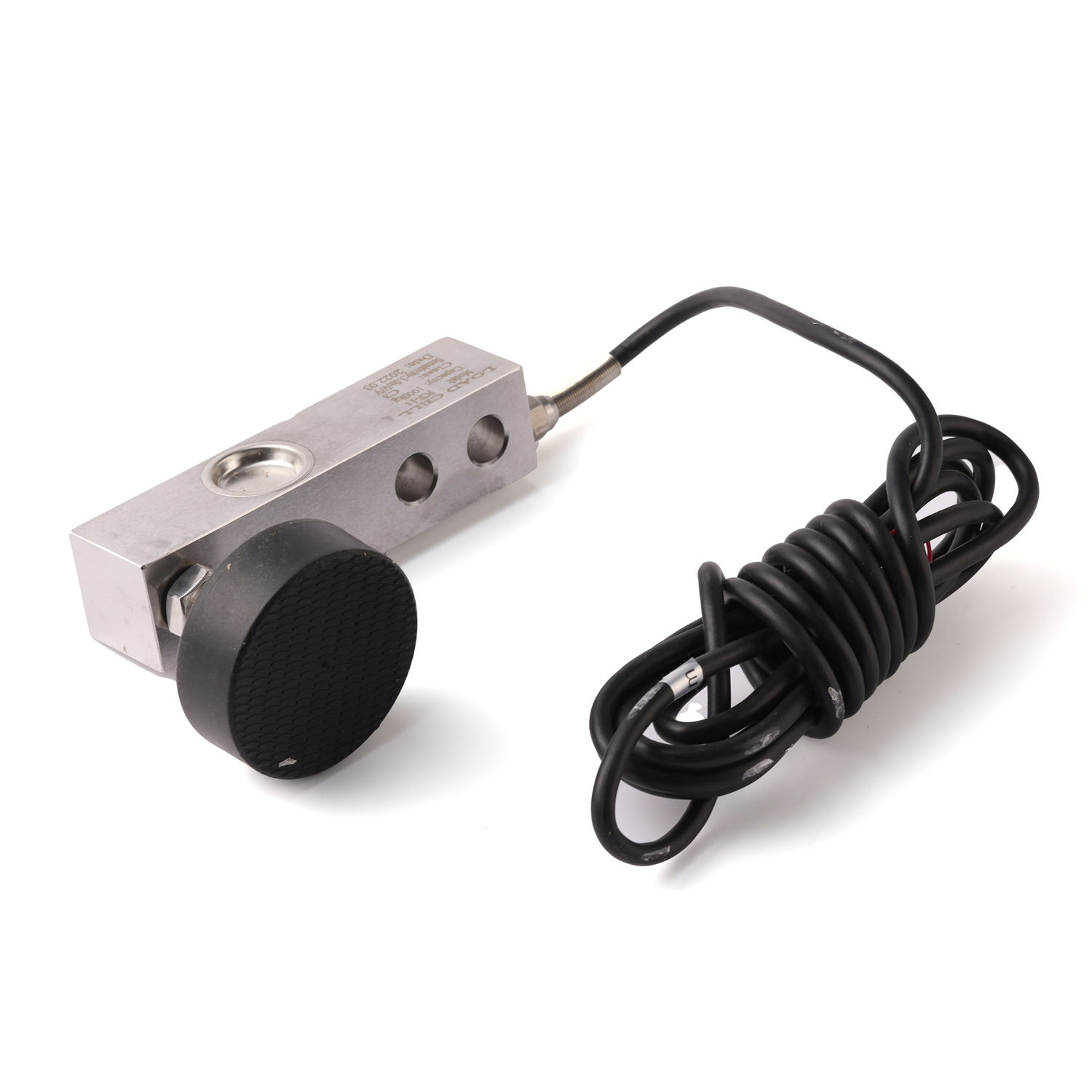

IP68 Single Shear Beam Strain Gauge Force Sensor

Model: SD-08
Capacity: 100kg, 200kg, 300kg, 500kg

Features:

  • Shear Beam Load Cell, Capacity range from 100kg to 500kg
  • Material:Alloy Steel or Stainless Steel, good quality, High accuracy and low costs,
  • Glue sealed, oil-proof,waterproof and anti-corrosion

Applications: Floor scales, Platform scales,hopper scale or other weighing machine.

Dimensions: (mm)

IP68 Single Shear Beam Strain Gauge Force Sensor 0



Parameters:



Capacity
30kg～500kg
Accuracy class
C3
Comprehensive error
±0.1% FS
Output sensitivity
2.0±0.1 mV/V
creep
±0.05% FS/30min
Zero output
±2.0% FS
Input impedance
350±20Ω
Output impedance
350±20Ω
insulation resistance
≥5000 MΩ(100VDC)
Influence of zero temperature
±0.05% FS/10℃
Sensitivity temperature effect
±0.05% FS/10℃
Temperature compensation range
-10℃ ~ +40 ℃
Operating temperature range
-30℃ ~ +70 ℃
Excitation voltage
10VDC ~ 12VDC
Safe overload range
150%
Limit overload range
200%
Material Science
Alloy Steel or Stainless Steel
Protection level
IP66
Label:

tipe load cell tombol

sel beban balok paralel

load cell akurasi tinggi
